Motor Graders

Name: Motor Graders
Brand: Hastings Deering

More power, more efficiency, improved emissions control and a wider moldboard help the Cat® 18 rise up to the challenge of mining operations. Technologies assist the operator and work to minimize operating costs. And, Cat durability helps ensure peak availability.

View all specifications Add to compare View attachments Save for later View all downloads

Have a question?

24/7 Support 131 228Ask Us

Find a centre

Base Power (1st Gear) - Net

227kW

Bore

130mm

Stroke

157mm

Find a centre

Overview

The 18 builds on the success of the 16 and offers additional power, a wider moldboard and the possibility to use a more aggressive blade angle, making it an ideal fit for mining operations that run 172-tonne (190-ton) or smaller trucks. The 18 enhances operational efficiencies by increasing coverage and reducing the number of passes required to complete the width of the road in certain applications. The 18 includes features that provide large benefits on operating cost reduction, uptime, performance improvements, and enhanced safety.

Resources

18 Product Brochure

Motor Grader Rig Out Catalog

18 Poster

Specifications

Have a question?

24/7 Support 131 228Ask Us

Base Power (1st Gear) - Net227kW
Bore130mm
Stroke157mm
Standard - Ambient Capability50°C
Base Power (1st Gear) - Net - Metric227kW
Maximum Torque - ISO 9249 - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent1721N·m
Derating Altitude - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent3711m
Derating Altitude - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent3954m
Maximum Torque - ISO 9249 - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent1721N·m
Maximum Torque - ISO 9249 - Tier 4/Stage IV/Japan 2014 (Tier 4 Final)1771N·m
Derating Altitude - Tier 4/Stage IV/Japan 2014 (Tier 4 Final)3810m
Displacement12.5l

Have a question?

24/7 Support 131 228Ask Us

Benefits & features

Have a question ?

24/7 Lorem ipsum dolor sit amet

Ask us

Overview

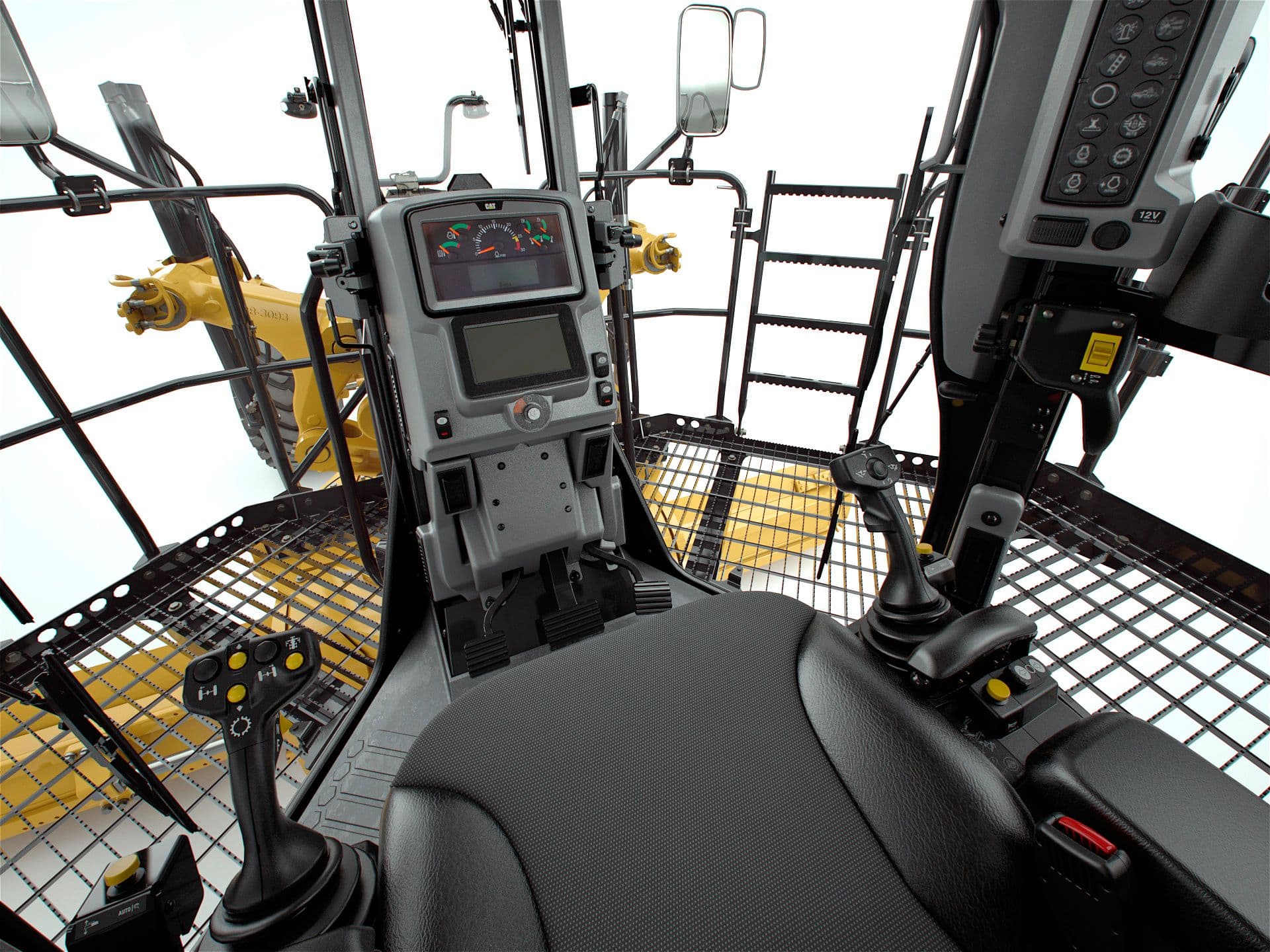

BETTER COMFORT AND CONTROL

<ul><li>18 foot moldboard and straight 10 inch by 1-3/8 inch cutting edge, allowing operators to increase coverage by 12.5% compared to a 16 foot moldboard. The operator can use a more aggressive blade angle and still be able to deposit the windrow away from the tires to protect tire life. More aggressive blade angles reduce the load on the machine and maintain better ground speed for enhanced performance.</li><li>Variable Horse Power (VHP) provides the ideal amount of power in all gears to efficiently perform diverse motor grader applications while protecting structure and drive train components.</li><li>With optimized combination of weight and balance the 18delivers enhanced traction and the ability to keep ground speed, especially when carrying a large load on the board.</li><li>Emissions reduction technology is transparent and automated with no action required from the operator.</li><li>Rear Ripper / Scarifier penetrates tough material fast for easier movement with the moldboard. Standard ripper with three shanks can add four more for additional versatility.</li><li>Multi-color, touch screen Information Display is the operator's gateway to monitoring machine performance and offers a convenient way of modifying machine parameters to tailor performance to the current task. Provides access to service information for initial troubleshooting.</li><li>Cat Product Link™ Elite is deeply integrated into the machine, helping take the guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink® user interface can help effectively manage fleets and lower operating costs.</li><li>Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.</li></ul>

Have a question ?

24/7 Lorem ipsum dolor sit amet

Ask us

Attachments

COMPATIBLE WITH

Cat® Detect with Smart Camera

The Cat® Detect with Smart Camera safety technology utilizes a smart camera, an in-cab display and alerts to help your operator keep track of people near the machine.

View Models

Cat® Detect with Surround Cameras

The Cat® Detect with Surround Camera system uses three or four cameras and an in-cab display to give operators a view of their surroundings. It's an effective way to increase safety at the site.

View Models

Cat Grade with Cross Slope for Motor Graders

Cat® Grade with Cross Slope is an integrated system that enables operators to achieve grade faster and more accurately by automating the cross slope of the blade, allowing the operator to do more in the same amount of time.

View Models

Cat Health

Through regular monitoring of machine conditions, mines can adopt a more proactive approach to maintenance and repair. Equipment health data is a key contributor to that approach. Data helps mines identify equipment problems long before failure.

Accessing the right data at the right time is critical to improving operational intelligence and machine predictive analysis. Cat® MineStar™ Health helps you meet that need by connecting you to your machines and delivering that important information. The MineStar Health portfolio set consists of Connectivity Enablers that collect, convert and transmit equipment data; and Applications that visualize, analyze and report health equipment data.

View Models

Cat Fleet for Surface

Cat® MineStar Fleet is the single best source for fleet management information. An integrated fleet monitoring and management system, it can be used with any machine or system to measure, manage and maximize every facet of an operation, no matter the size or type. Fleet provides real-time visibility to cycle time, payload and other key operational parameters. It monitors machine locations and material movement and provides alerts of misroutes to ensure material is moved to the proper location.

View Models

Cat Terrain for Grading

Grading is a vital but less visible function that provides essential support for loading and hauling operations. Cat® MineStar™ Terrain for grading helps make dozer and motor grader operations safer and more efficient, which can make a significant difference to a mine site’s bottom line. Terrain for grading helps operators get to the specified grade more quickly without surveying, guesswork or rework.

View Models

Cat MineStar Edge

Cat® MineStar Edge™ is a technology platform that delivers more connected, integrated, scalable and intuitive products that extend further up and down the value chain. Edge makes it possible for you to use proven MineStar technologies across your entire mining organization and creates an operational ecosystem that provides visibility to every aspect of your operation. Edge delivers near-real-time access to data that was up to 98% accurate and enables you to make changes in-shift while already knowing the impact those changes will have further down the value chain?

View Models
