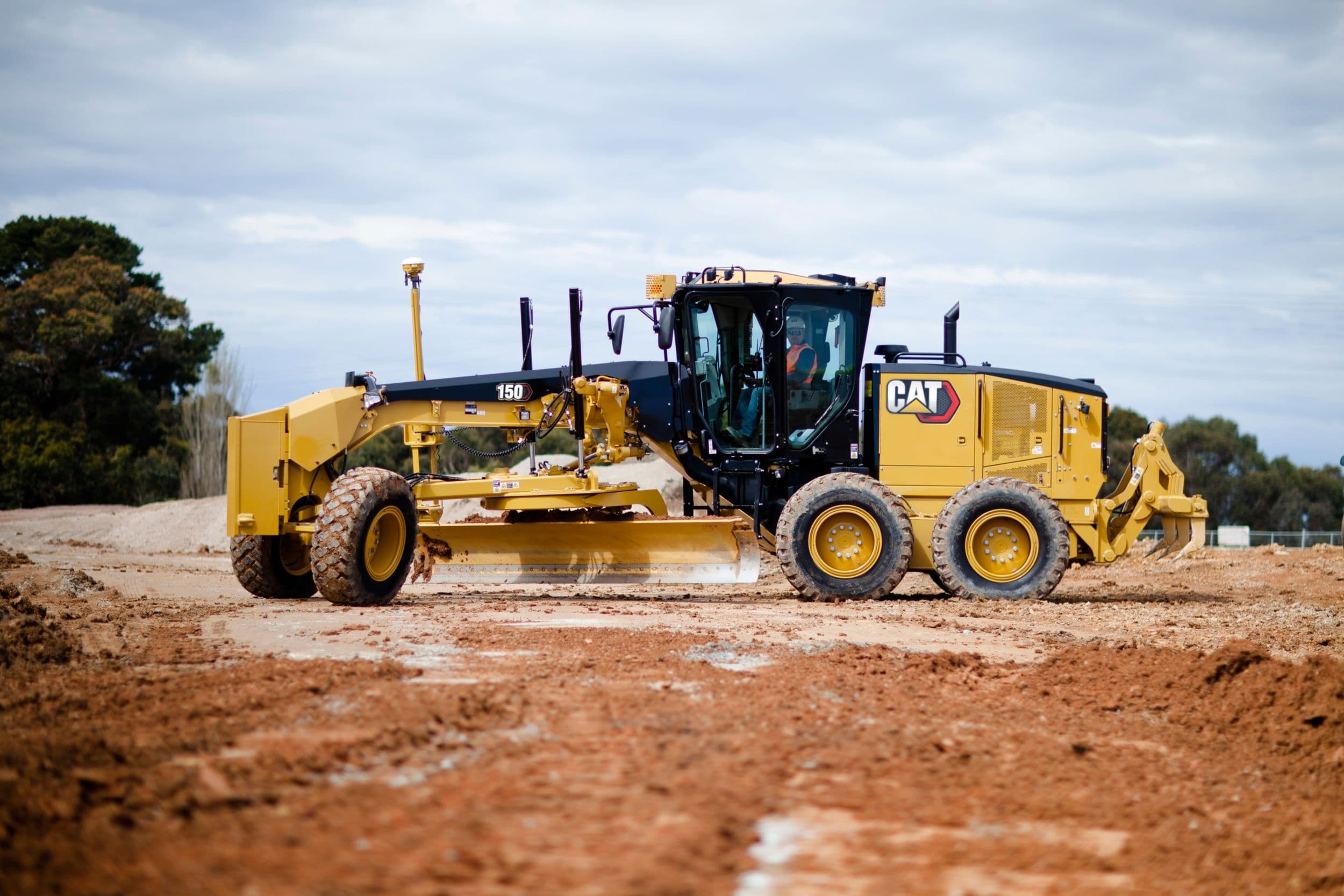

With a legendary Cat® motor grader pedigree, the 150/150 AWD models offer peak performance, efficiency, long life and operator comfort. Available with a deep array of technologies to lessen the load on operators and enhance grading performance, the 150 is one high productivity machine.
Net Power Range (Tier 3)
136kW
Base Power (1st Gear) - Net - Metric
136kW
Displacement
7.2l
Overview
With a legendary Cat® motor grader pedigree, the 150/150 AWD models offer peak performance, efficiency, long life and operator comfort. Available with a deep array of technologies to lessen the load on operators and enhance grading performance, the 150 is one high productivity machine.
Specifications
Engine
- Net Power Range (Tier 3)136kW
- Base Power (1st Gear) - Net - Metric136kW
- Displacement7.2l
- Bore110mm
- Stroke127mm
- Maximum Torque - VHP Plus1159N·m
- Derating Altitude3048m
- Standard - Ambient Capability43°C
- High - Ambient Capability50°C
Overview
DESIGNED FOR OPERATORS

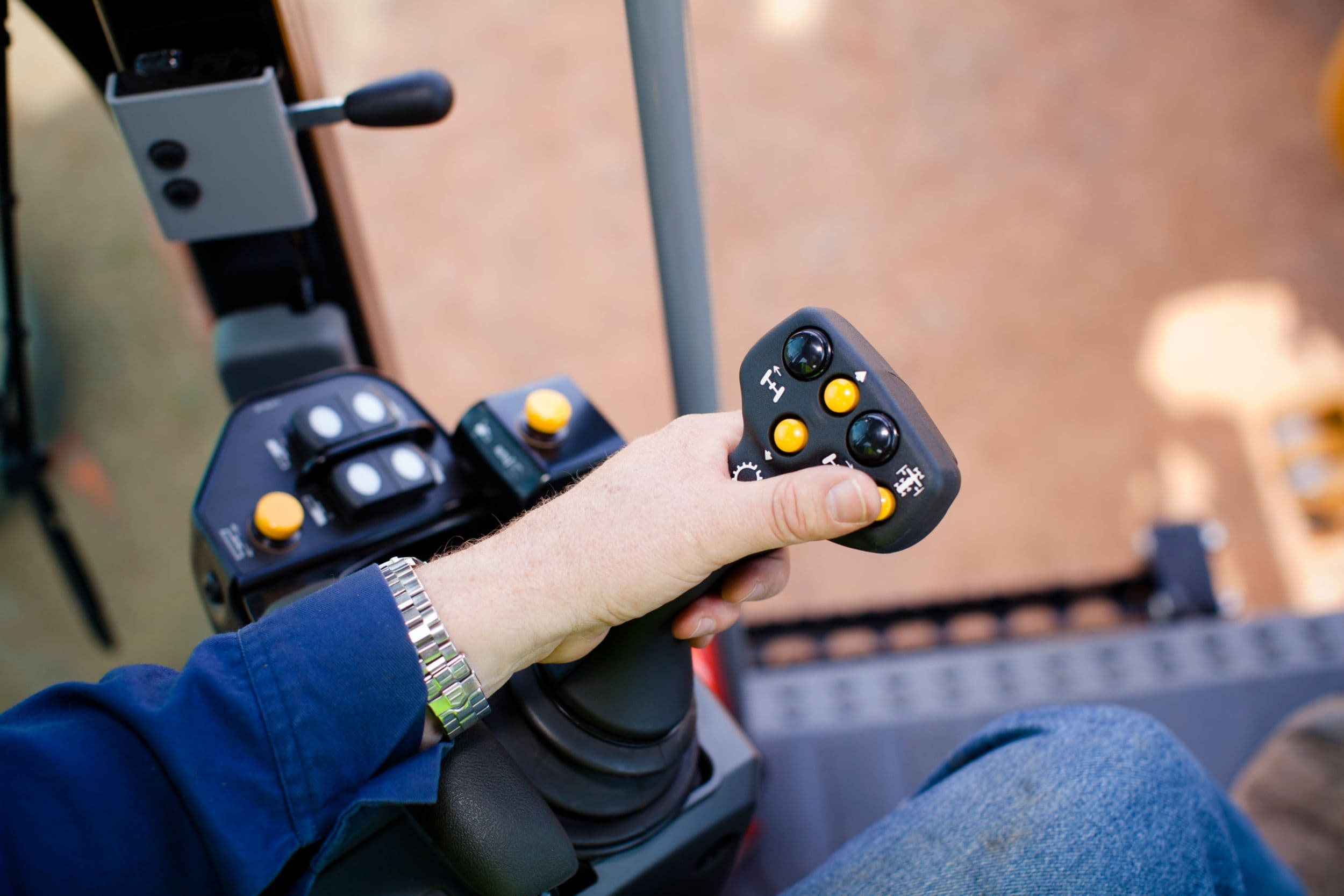

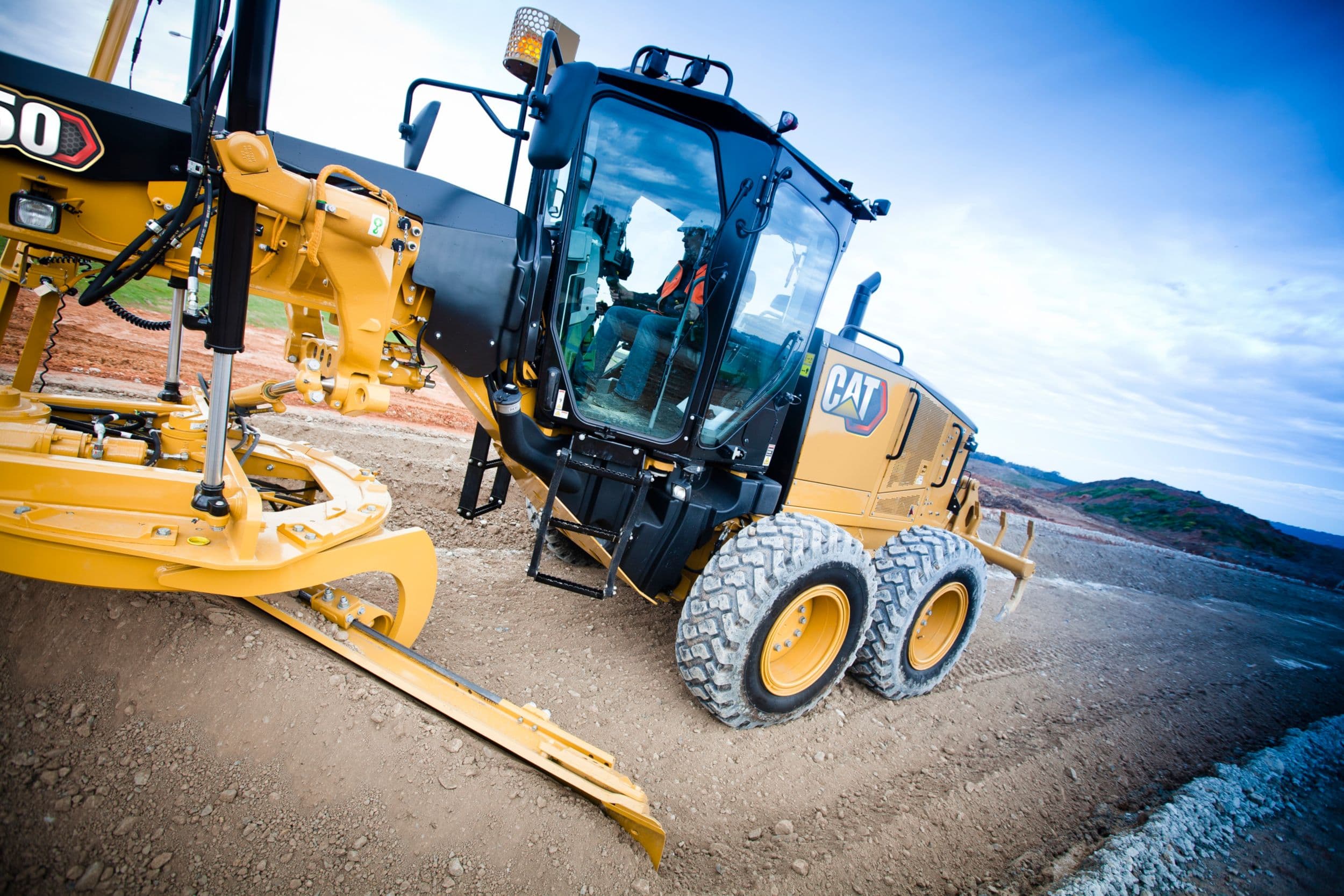

<ul><li>Good visibility is key to safety and efficiency. Angled cab doors, tapered engine enclosure and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. Optional rear vision camera further enhances lines of sight all around the machine.</li><li>Experience the most spacious, comfortable cab in the industry.</li><li>Easy-to-learn joystick controls replace levers, so hand and arm movement is reduced by 78%, helping reduce operator fatigue for better productivity.</li><li>Left joystick controls steering, articulation, return-to-center, wheel lean, gear selection, left moldboard lift cylinder and float.</li><li>Right joystick controls drawbar, circle and moldboard functions as well as electronic throttle control and manual differential lock/unlock.</li><li>Joystick lean angle mirrors the steer tires' turning angle.</li><li>A brake tensioning system holds the joystick in position until the operator moves it.</li><li>Steering control automatically reduces sensitivity at higher ground speeds for predictable control.</li><li>Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped).</li><li>Control switches are in easy reach.</li><li>Standard Cat Comfort Series suspension seat is fully adjustable.</li><li>Control pods are electronically positioned allowing each operator to set the ideal operating position.</li><li>Multiple isolation mounts reduce sound and vibration for a more relaxed work environment.</li><li>High capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.</li><li>An optional deluxe radio with CD features MP3 and Bluetooth® technology.</li><li>Easy-to-read, high-visibility gauges and warning lamps keep you aware of critical system information.</li><li>Cat Messenger offers real-time machine performance and diagnostic data to help get the most from your machine.</li><li>Electronic Throttle Control helps improve productivity by providing the best match of horsepower and torque for the demands of the application.</li><li>Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button.</li></ul>
Attachments
COMPATIBLE WITH
Cat® Detect with Smart Camera
The Cat® Detect with Smart Camera safety technology utilizes a smart camera, an in-cab display and alerts to help your operator keep track of people near the machine.
View ModelsCat® Detect with Surround Cameras
The Cat® Detect with Surround Camera system uses three or four cameras and an in-cab display to give operators a view of their surroundings. It's an effective way to increase safety at the site.
View ModelsCat Grade with Cross Slope for Motor Graders
Cat® Grade with Cross Slope is an integrated system that enables operators to achieve grade faster and more accurately by automating the cross slope of the blade, allowing the operator to do more in the same amount of time.
View Models
