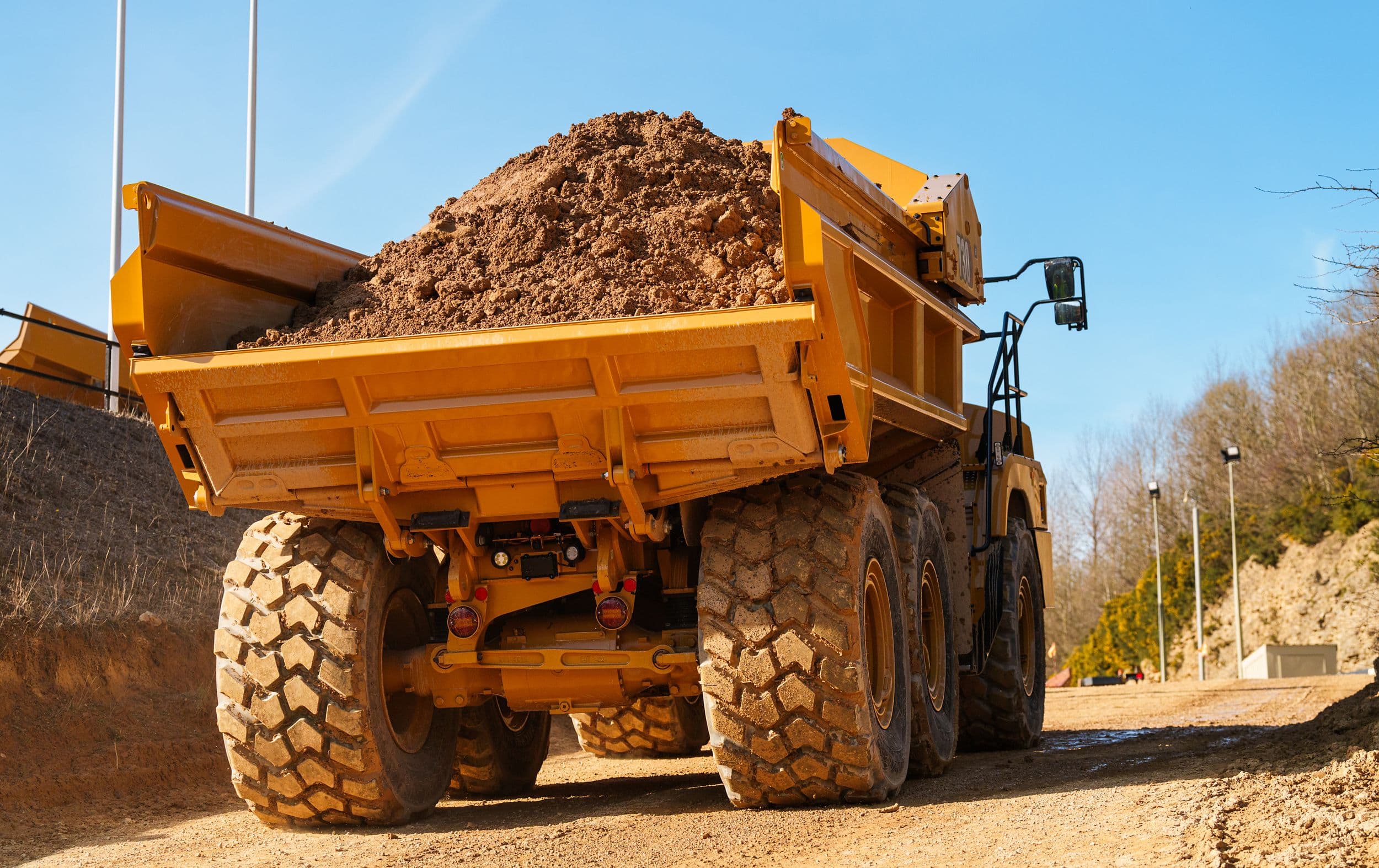

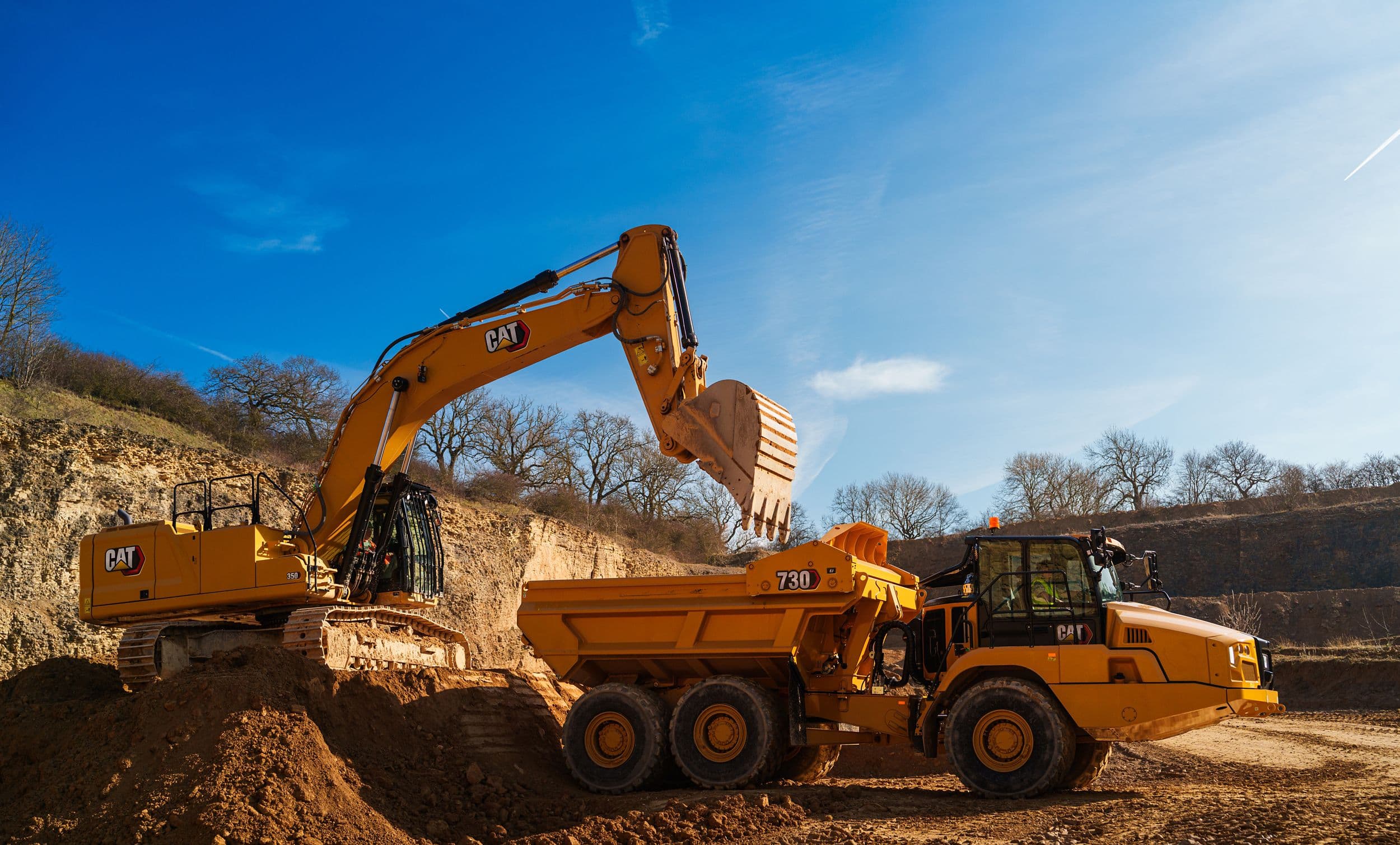

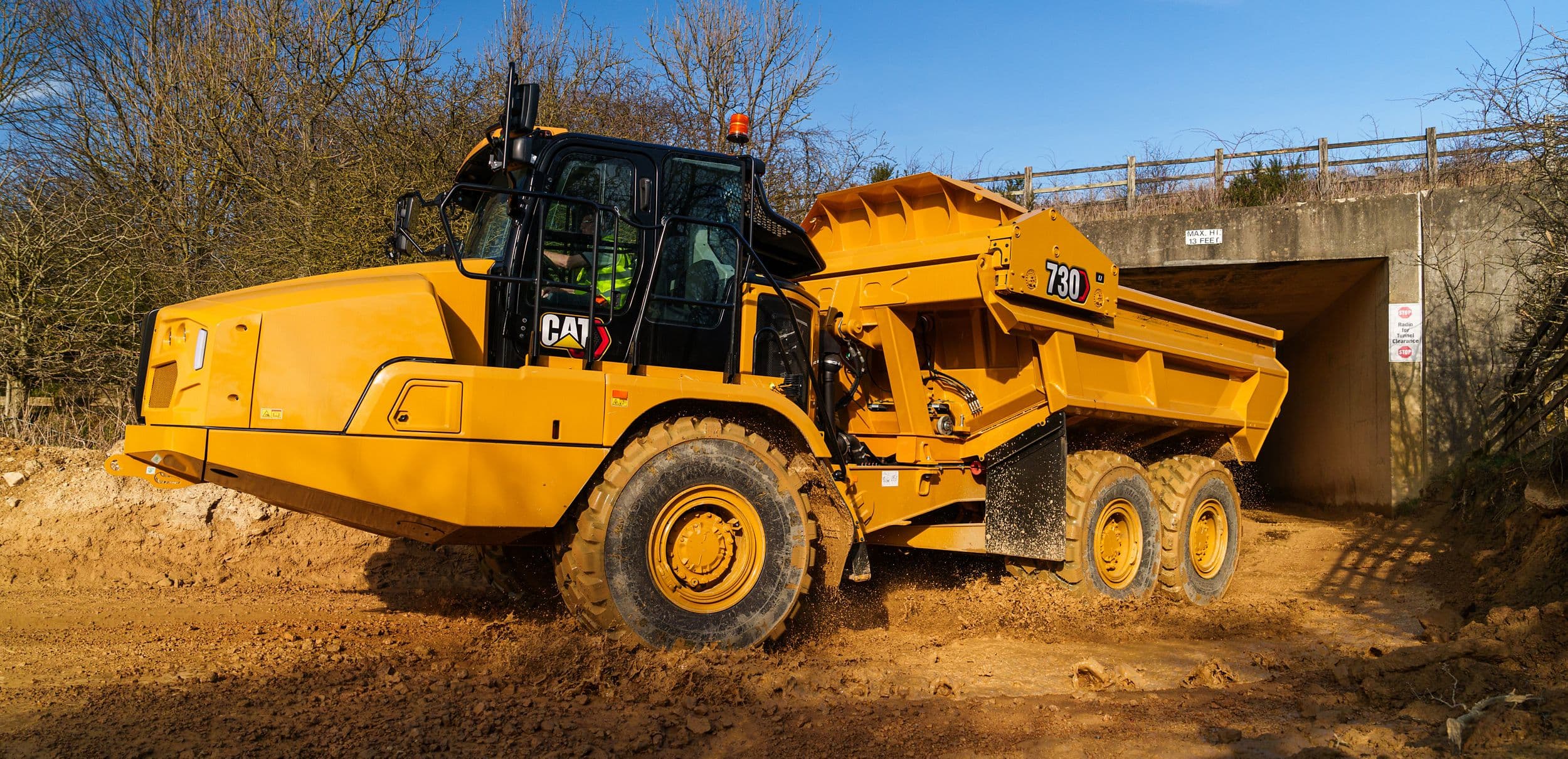

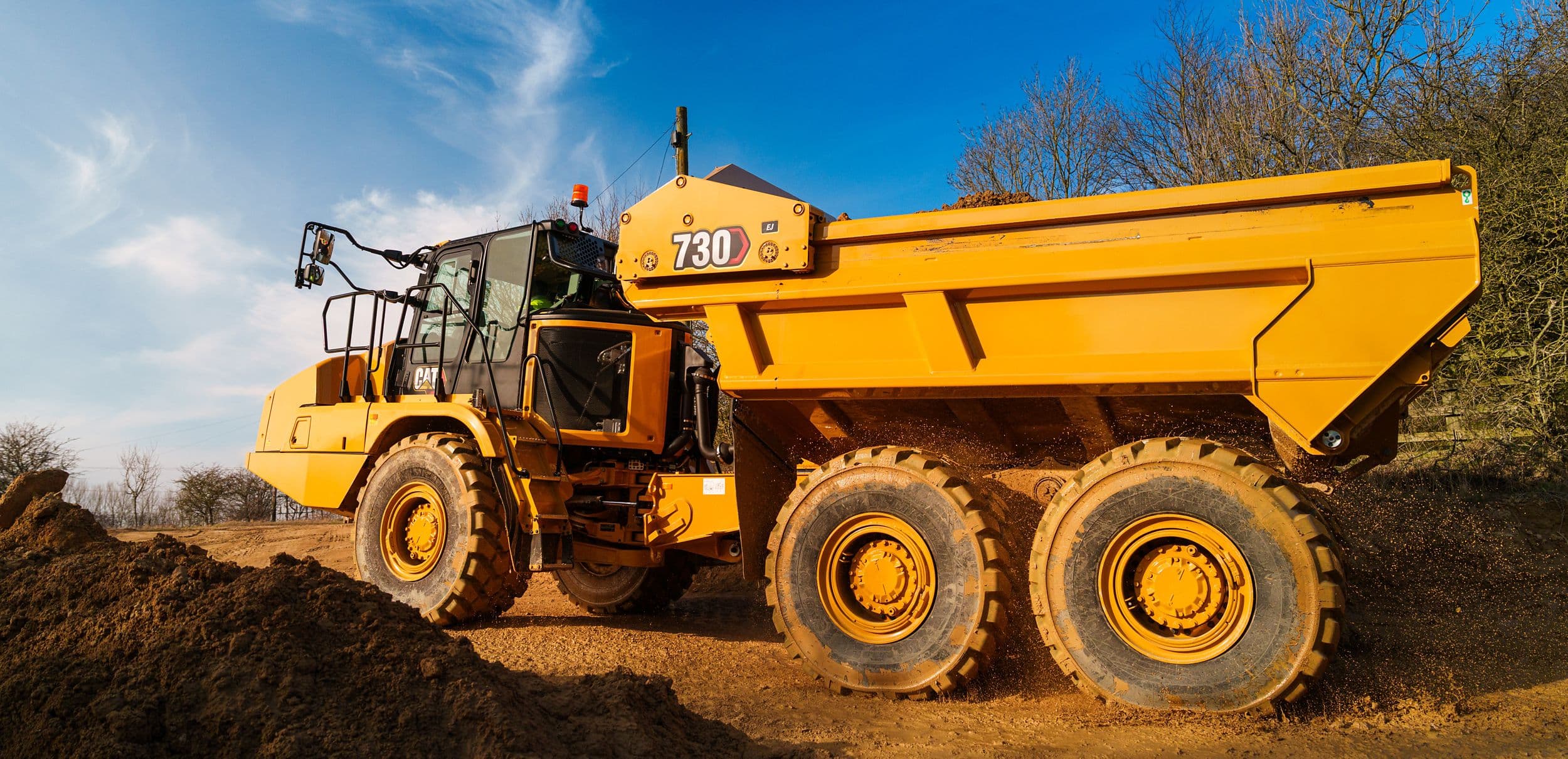

The Cat® 730 EJ articulated truck offers a unique advantage by ejecting material in low-clearance areas—ideal for tunnels, overhead lines, or underground work. On-the-go ejecting cuts the need for extra equipment, speeding up cycles and boosting productivity on compact jobsites.
Gross Power (SAE J1995)
280KW
Net Power (SAE J1349)
274KW
Engine Power (ISO 14396)
276KW
Overview
The Cat® 730 EJ articulated truck offers a unique advantage by ejecting material in low-clearance areas—ideal for tunnels, overhead lines, or underground work. On-the-go ejecting cuts the need for extra equipment, speeding up cycles and boosting productivity on compact jobsites.
Specifications
Engine
- Gross Power (SAE J1995)280kW
- Net Power (SAE J1349)274kW
- Engine Power (ISO 14396)276kW
- Bore130mm
- Stroke157mm
- Displacement12.5l
- No Engine De-rating Required Below3990m
- Peak Engine Torque Gross (SAE J1995)1830N·m
- Peak Engine Torque Net (SAE J1349)1810N·m
- Peak Engine Torque Speed1200r/min
Attachments
COMPATIBLE WITH
Cat® Detect with Smart Camera
The Cat® Detect with Smart Camera safety technology utilizes a smart camera, an in-cab display and alerts to help your operator keep track of people near the machine.
Cat® Detect with Surround Cameras
The Cat® Detect with Surround Camera system uses three or four cameras and an in-cab display to give operators a view of their surroundings. It's an effective way to increase safety at the site.
Driver Safety System (DSS)
Fatigued and distracted equipment operators can pose a severe risk to themselves and others. The consequences can be costly, even fatal. The Cat® Detect Driver Safety System (DSS) is an in-cab detection technology that can help identify and address fatigue and distraction events, enhancing operator safety.
VisionLink™
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
Cat® Inspect
Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.
Cat Remote Flash
Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.
Cat Payload for Articulated Trucks
Cat® Production Measurement provides real-time payload weighing to help operators optimize hauling potential and maximize productivity. Automated tracking helps site managers monitor material movement and efficiency metrics to manage production, improve jobsite efficiency, and lower costs.
Cat Stability Assist for Articulated Trucks
Cat Stability Assist for Articulated Trucks increases awareness of machine stability during operation by warning operator if machine is approaching an un-safe angle, ultimately resulting in machine safety and uptime.
VisionLink® Productivity
VisionLink® Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.
